Doepfer A-105-2 24 dB Low Pass (SSI-Type) Filter

Module A-105-2 is a voltage controlled low pass filter with 24dB/octave slope.

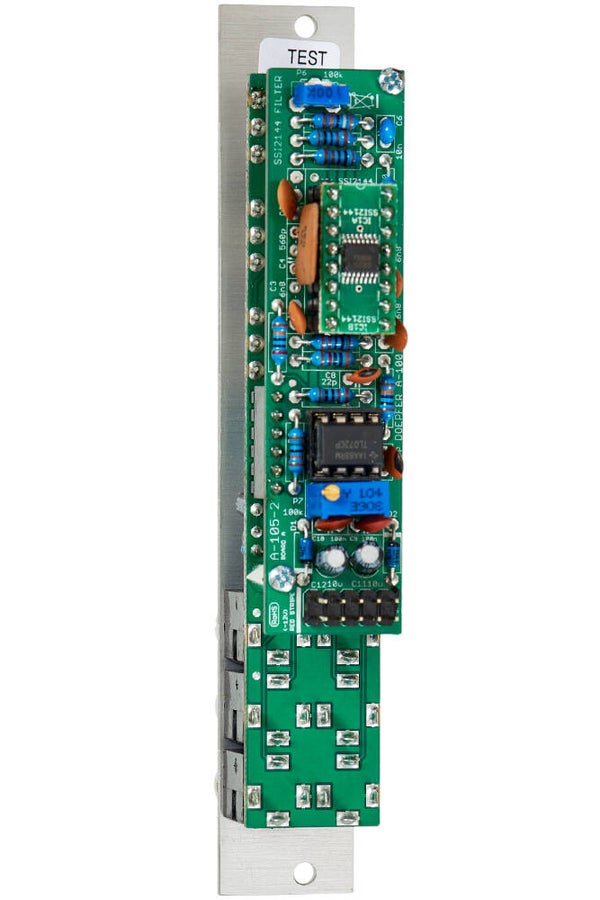

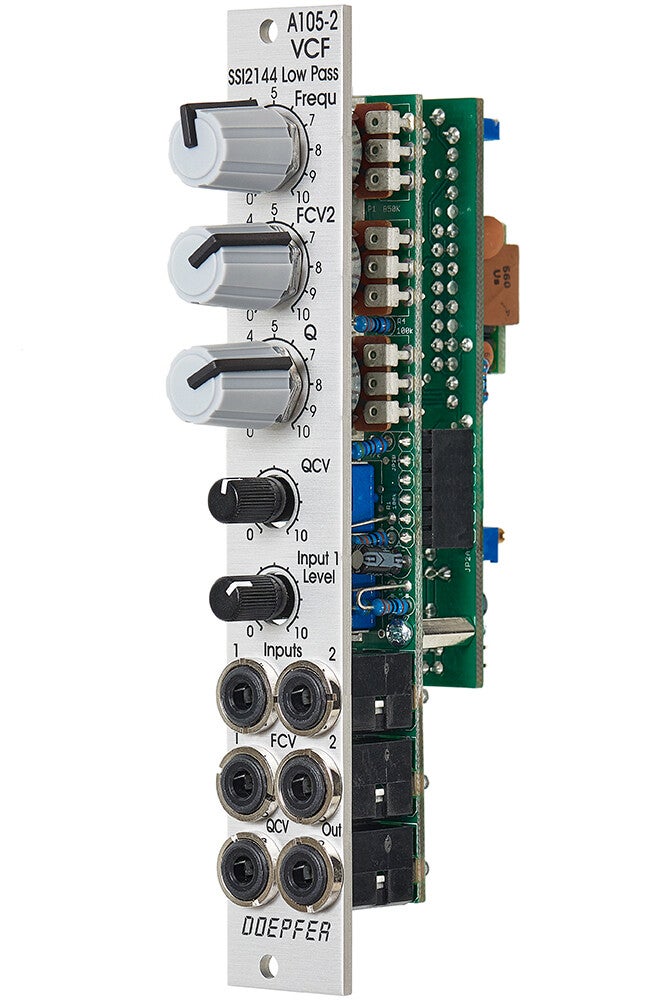

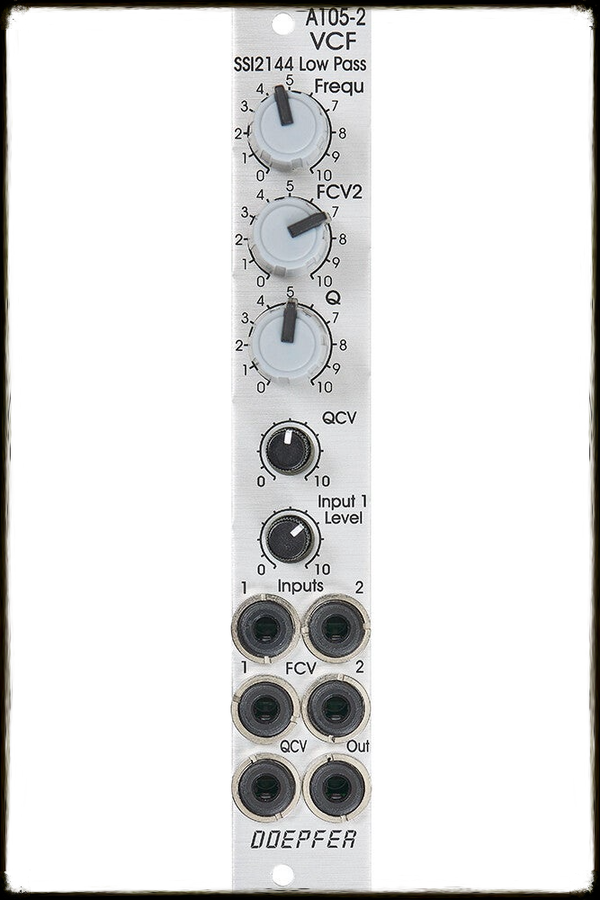

The module has these controls and in/outputs available:

• Control Frequ: manual frequency control
• Control FCV2: attenuator for the frequency control voltage applied to socket FCV2
• Control Q: manual resonance control
• Control QCV: attenuator for the resonance control voltage applied to socket QCV
• Control Input 1 Level: attenuator for the audio input signal applied to socket Input 1
• Socket Input 1: audio input 1 (with attenuator)
• Socket Input 2: audio input 2 (without attenuator)
• Socket FCV1: frequency control voltage 1 (without attenuator, about 1V/oct scale)
• Socket FCV2: frequency control voltage 2 (with attenuator)
• Socket QCV: resonance control voltage (with attenuator)
• Socket Out: audio output

Technical notes:

• Frequency range: about 15Hz ... 15 kHz
• Resonance up to self oscillation
• Max. input voltage at Input 2 without clipping/distortion: about 15Vpp
• Max. output voltage without clipping/distortion: about 15Vpp
• The signals of both inputs are mixed before they are processed by the filter. This saves an external mixer for small setups

Merk:

Doepfer

Type:

Filter

Nummer:

A-105-2

Diepte:

45mm

Breedte:

4HP

Power:

20mA @ +12V, 20mA @ -12V
