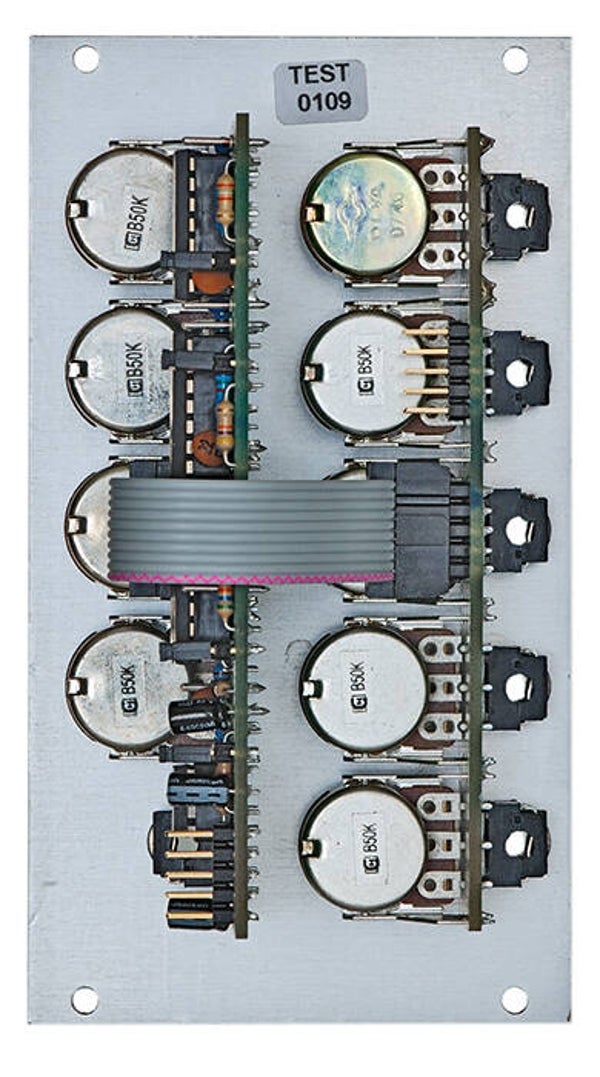

Doepfer A-137-2 Voltage Controlled Wave Multiplier II

Module A-137-2 is another version of a wave multiplier. In contrast to the A-137-1 Wavemultiplier I the A-137-2 generates four phase-shifted copies of a VCO signal applied to the audio input. The four shifted signals are added to the original signal to obtain a fat sound similar to five independent VCOs. The phase shifting is made by a simple circuit that works only for sloped signals like sawtooth, triangle or sine, but not for rectangles or pulses.

Merk:

Doepfer

Type:

Distortion, Waveshaper

Nummer:

A-137-2

Diepte:

50mm

Breedte:

14HP

Power:

30mA @ +12V, 20mA @ -12V
