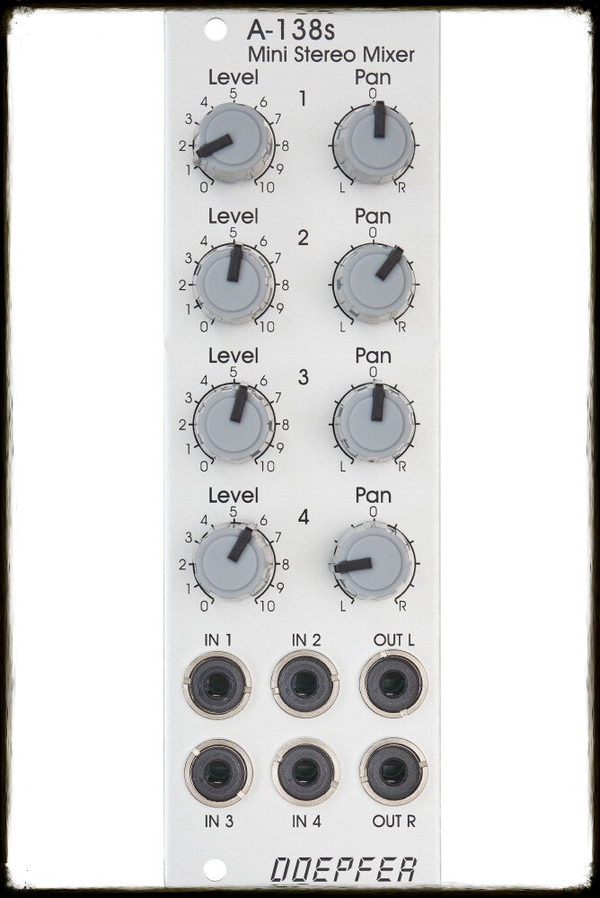

Doepfer A-138s Mini Stereo Mixer

A-138s is a simple but useful 4-in-2 mixing tool.

It has four inputs available. Each input is equipped with an attenuator (Level) and a panning control that is used to distribute the signal to the left and right output.

Beyond stereo mixing it is equally suited to create variable parallel routings.

For example: Any of the four inputs may be routed in variable intensity to feed two filters. You may regard the A-138s as a smaller version of the A-138m Matrix Mixer. Inputs and outputs are DC coupled, i.e. the module can be used for the mixing of control signals too.

Merk:

Doepfer

Type:

Stereo Mixer

Nummer:

A-138s

Diepte:

30mm

Breedte:

8HP

Power:

10mA @ +12V, 10mA @ -12V
