Doepfer A-142-4 Quad Decay

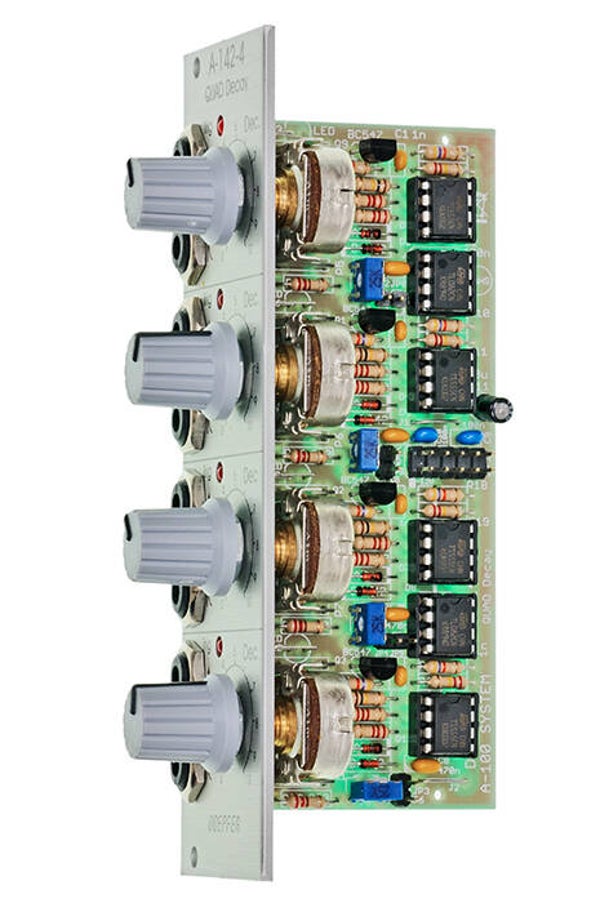

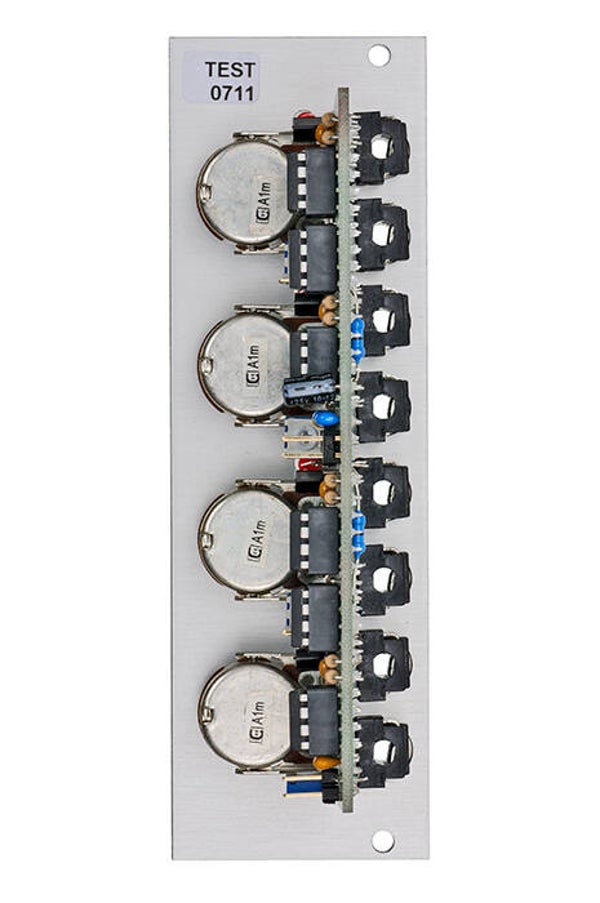

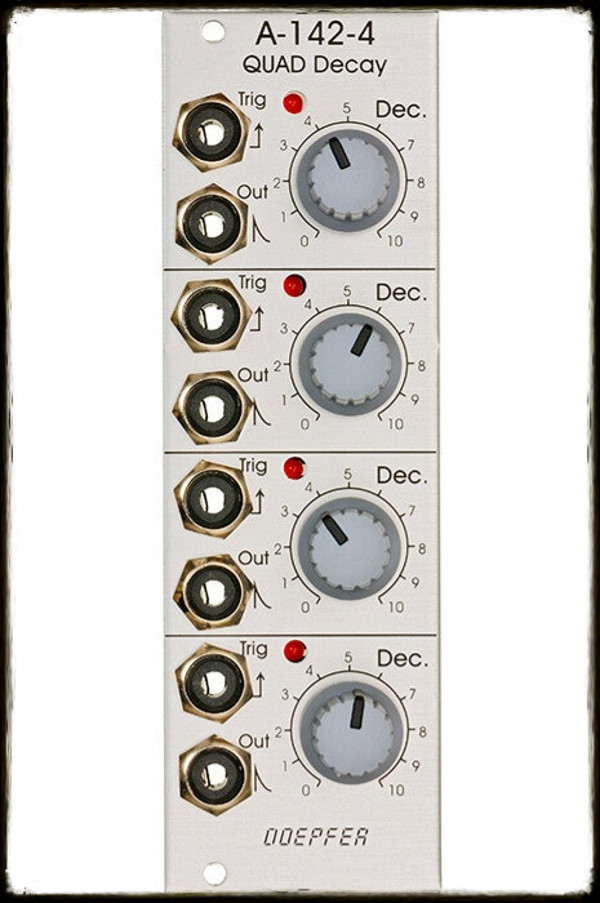

Module A-142-4 contains four simple envelope generators.

The only time parameter is Decay and can be adjusted manually by means of the Dec. control in the range 2 ms ... 2 seconds. The attack time can be adjusted internally by means of a separate trimming potentiometer for each sub-unit in the range 1 ms ... 15 ms. The factory setting is about 3 ms. This is the attack time of the TB303. Each envelope output has a LED control available. The trigger inputs are normalized (1 -> 2 -> 3 -> 4). Suggestions for modifications: - Each sub-unit has a pin header with two pins available. When the two pins are shortened (e.g. by means of a jumper or a toggle switch connected to the two pins) the corresponding sub-unit changes to a loop mode. In this mode the unit is triggered by itself like an LFO.. - By changing the value of a capacitor the time range can be modified (e.g. 0.2 ms ... 0.2 seconds or 20 ms ... 20 seconds)

Merk:

Doepfer

Type:

Envelope, Function Generator

Nummer:

A-142-4

Diepte:

50mm

Breedte:

8HP

Power:

30mA @ +12V, 10mA @ -12V
