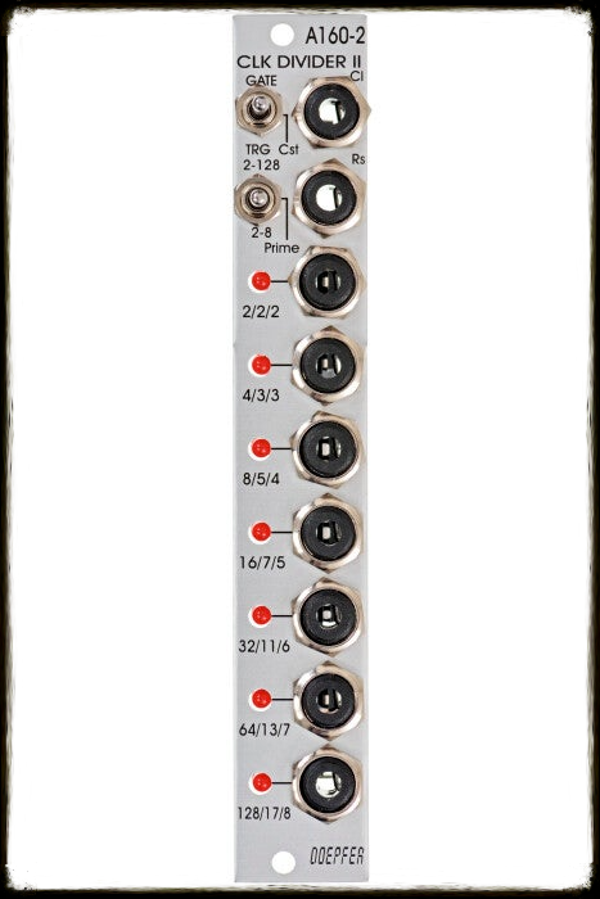

Doepfer A-160-2 Clock/Trigger Divider II

Module A-160-2 is an enhanced version of the standard clock divider A-160. The module is a frequency divider for clock/trigger/gate signals, designed to be a source of lower frequencies, particularly for rhythm uses.

The Clock input will take any digital signal from, eg., an LFO, MIDI sync, or the gate from a MIDI-CV interface. At the outputs, you have access to three sets of seven different sub-divided clock signals, from half the clock frequency down to 1/128. The low/high levels of the output signals are 0V and about +10V.

The A-160-2 also has a reset input. Whenever a reset signal is sensed, all outputs are set to certain levels which depend upon the selected mode.

Merk:

Doepfer

Type:

Clock Divider, Clock Multiplier, Clock & Trigger

Nummer:

A-160-2

Diepte:

35mm

Breedte:

4HP

Power:

50mA @ +12V, 0mA @ -12V
