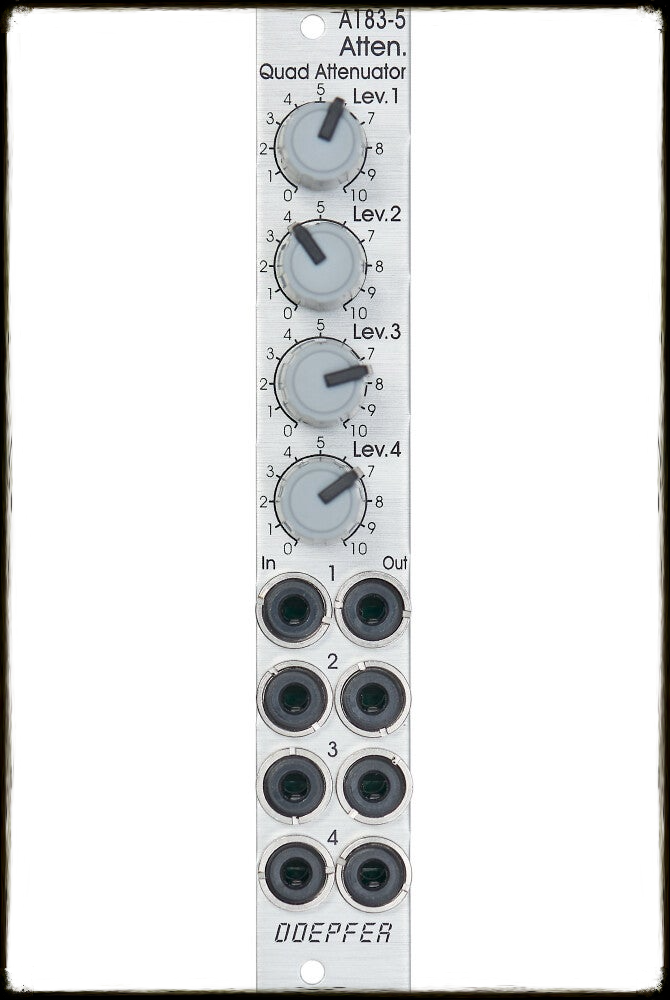

Doepfer A-183-5 Quad Attenuator

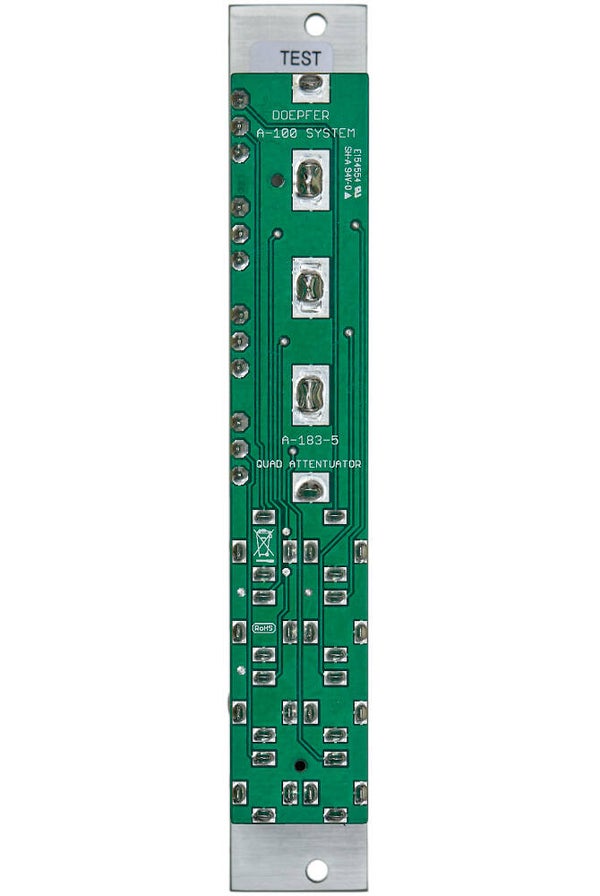

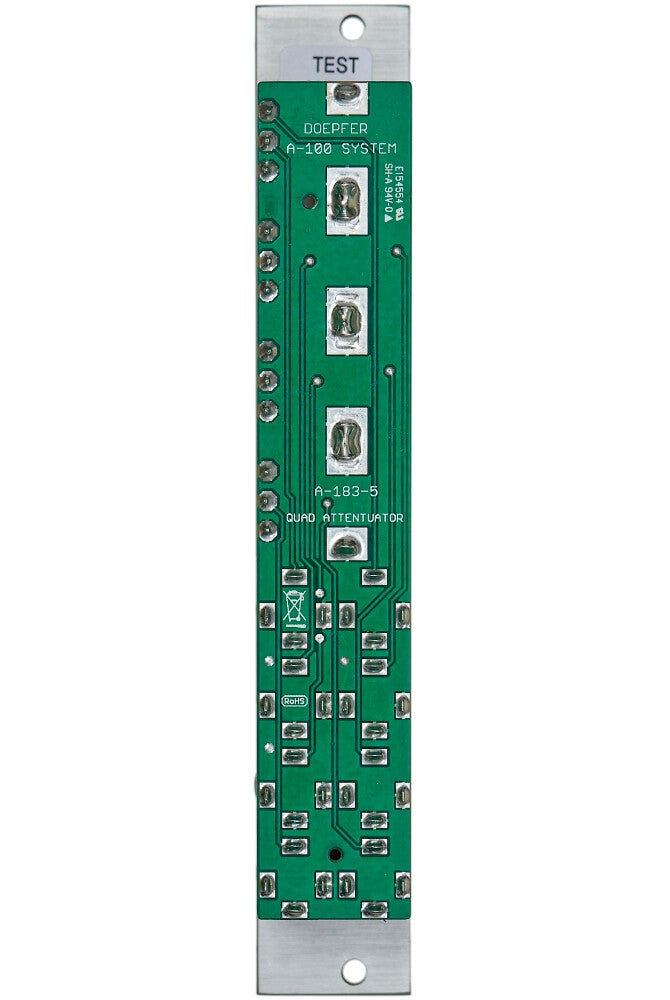

Module A-183-5 is a simple passive quad attenuator. Passive means in this context, that each unit is made of two sockets and a 50k linear potentiometer only. There are no active parts like amplifiers or buffers and no power supply is required.
This is how the A-183-5 works: At the output socket appears the attenuated input signal, i.e. zero level at the fully CCW position and max. level and the fully CW position.

Merk:

Doepfer

Type:

Attenuator

Nummer:

A-183-5

Diepte:

20mm

Breedte:

4HP

Power:

0mA @ +12V, 0mA @ -12V
