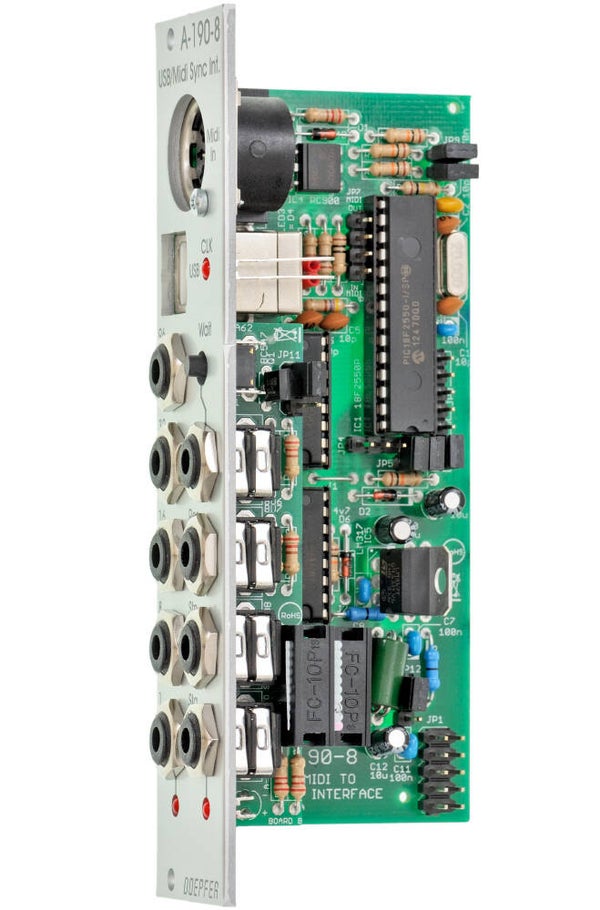

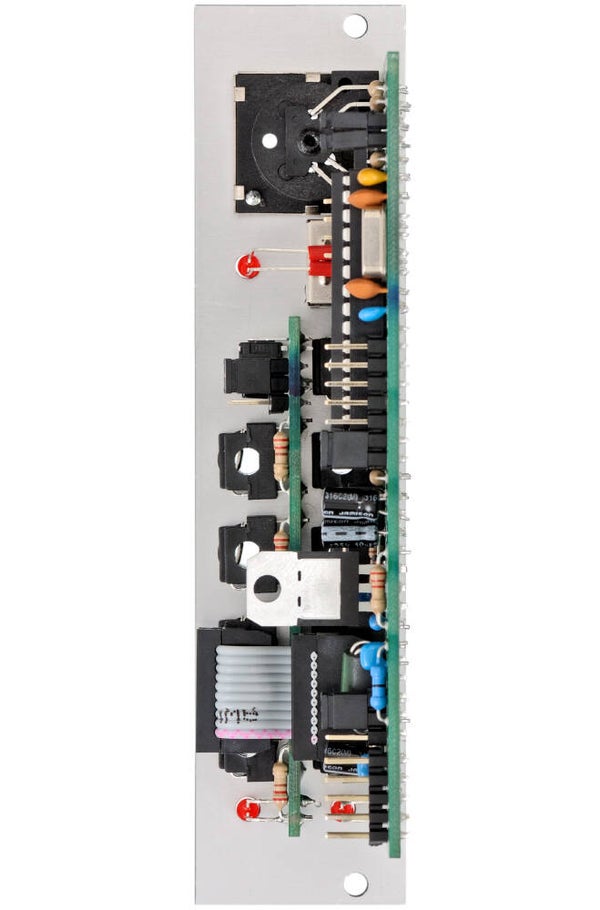

Doepfer A-190-8 USB/Midi-to-Sync Interface

Module A-190-8 is a Midi/USB to Sync interface.

The main application of the module is the control of clocked A-100 modules like sequencers (A-155), sequencer controllers (A-154), trigger divider (A-160 or A-163), trigger sequencer (A-161) and similar units. It may be used also to reset or sync LFOs (e.g. A-145, A-147, A-143-4) or to trigger envelope generators (A-140, A-141-2, A-143-1, A-143-2) with a fixed clock rate.

Merk:

Doepfer

Type:

Midi/USB to CV/Gate/Sync

Nummer:

A-190-8

Diepte:

50mm

Breedte:

6HP

Power:

50mA @ +12V, 0mA @ -12V
