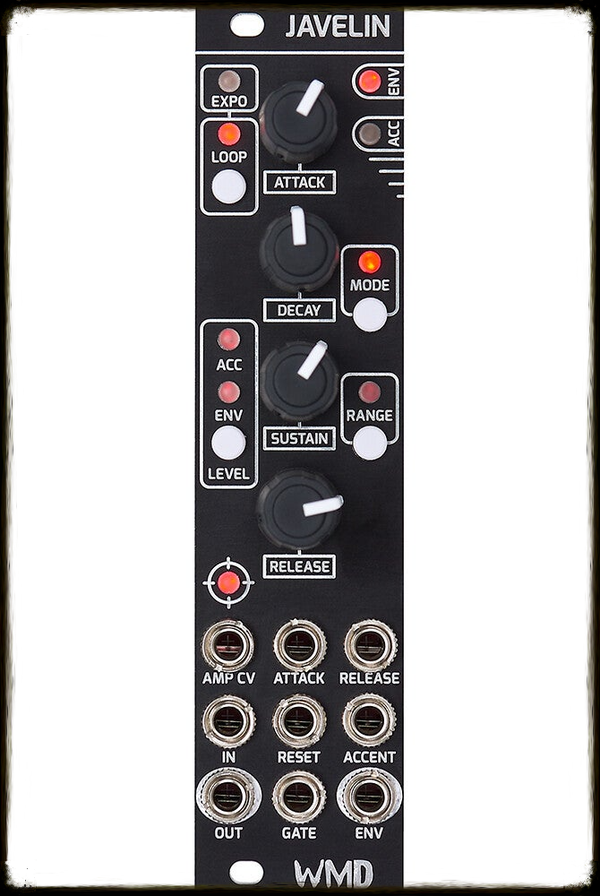

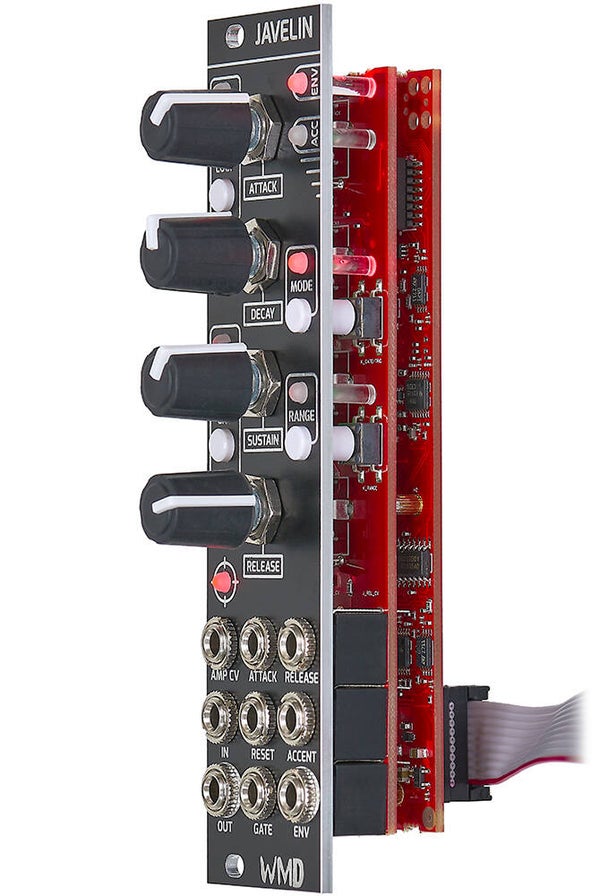

WMD Javelin Performance Envelope Generator

Javelin is a module that is basically an ADSR envelope with integrated VCA. However, it has several features that make the module an expressive sound shaping tool.

Three level ranges determine the total amplitude of the envelope, additionally three different time ranges are integrated, which can be switched between.

The accent behaviour is also unique. If several gates are applied to the Accent input at the same time, the envelope rises slightly with each gate.

Features:

• Attack-decay-sustain-release envelope
• Integrated VCA
• Unique accent behaviour for expressive sequences
• Reset input
• CV control over attack and release
• Looping mode for LFO-like modulations
• Mode switch for gate and trigger behaviour
• Linear, moderate or steep exponential shape
• Short hold in the peak of the attack for more punch

Merk:

WMD

Type:

Envelope

Naam:

Javelin

Diepte:

38mm

Breedte:

6HP

Power:

93mA @ +12V, 65mA @ -12V
