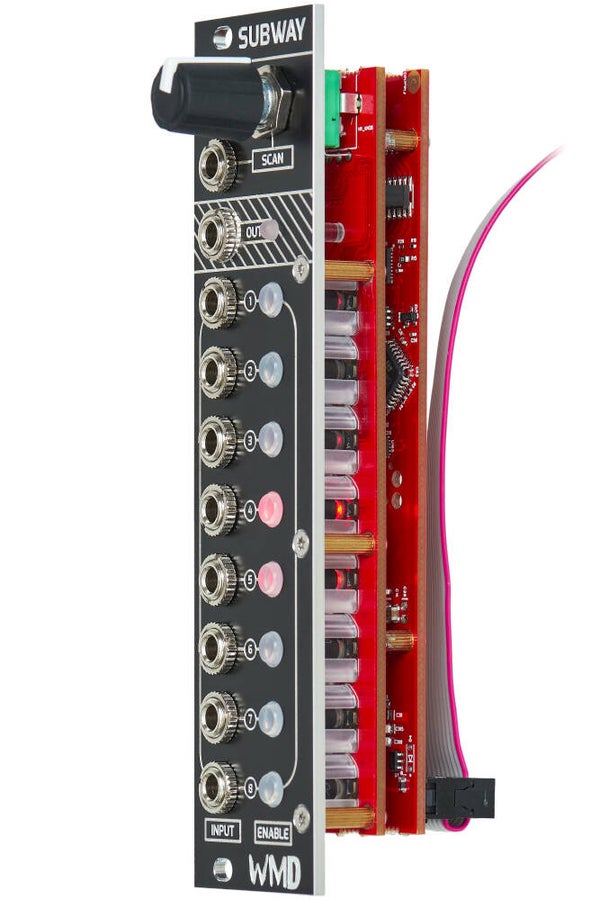

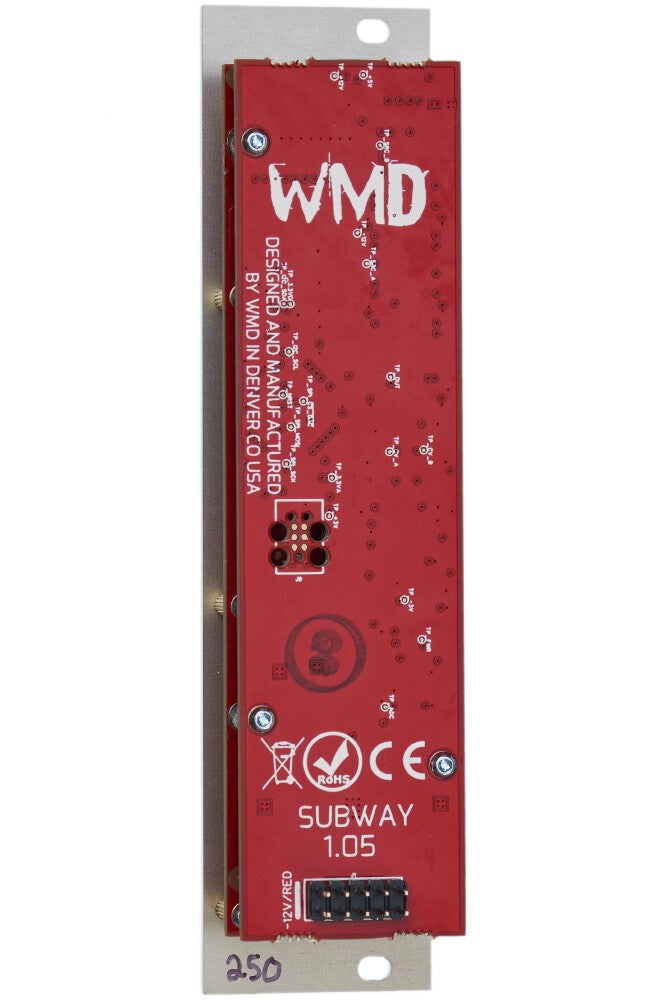

WMD Subway Intelligent Crossfading Switch

Subway is a scanning crossfader with 8 inputs and 1 output.

The eight inputs can be used for control voltages as well as audio signals. A potentiometer or CV can be used to mix between the individual sources. Each of the inputs also has a manual on/off switch.

Application examples

• complex modulations
• Waveform selector for oscillators or noise
• Morphing waveforms from wavetables
• Switching between different envelopes

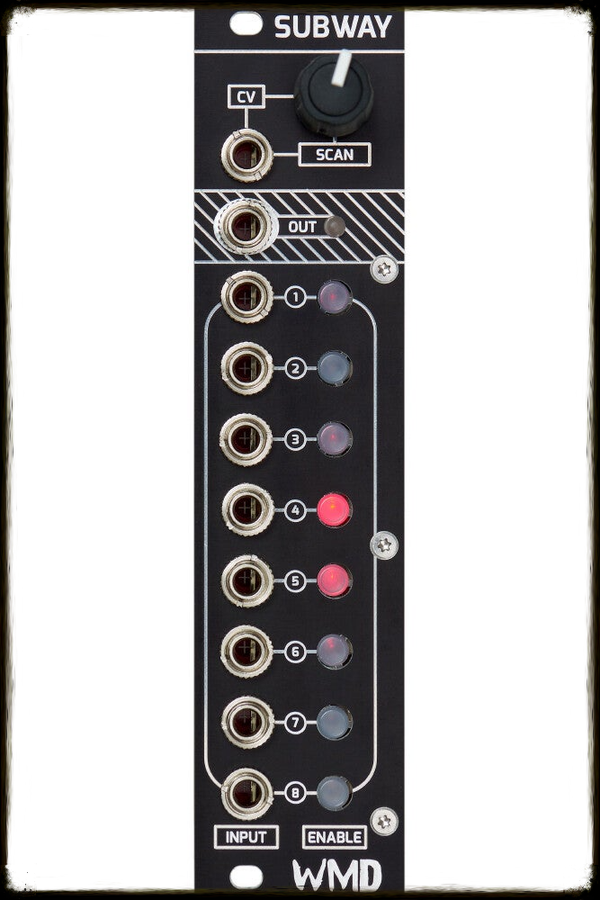

Controls:

• Scan knob - master control over which input goes to the output. The knob is shifted when a CV is applied to the scan CV input.
• Enable switch - Controls which input is active. When the LED is off, the input is removed from the output selection. A dim LED means the input is active but not yet selected. Bright LED means that the input is currently being sent to the output.
• Curves: Subway has three different curves if you hold down keys 1-3 when switching on and then release them. Button 1 sets a linear curve, button 2 sets an exponential curve and button 3 sets a steady curve.

Merk:

WMD

Type:

Insert, Panner, Crossfader

Naam:

Subway

Diepte:

38mm

Breedte:

6HP

Power:

80mA @ +12V, 22mA @ -12V
